Product Overview

Web-Based Application: WISE® WHEELTRACK is designed to allow access to detailed analysis of the data collected by the various WISE® subsystems.

Accessible & Easy to Use: The system is simple, direct, and customizable for individual customer needs, with various data grids that are easily sorted and filtered.

Custom Reporting: WHEELTRACK has options to export displayed data as seen to XLSX and CSV file formats, allowing for custom report creation at any time.

Saves Time & Money: WHEELTRACK reduces the time spent on wheel inspection, reduces unscheduled downtime, and can extend wheel life by optimizing wheel truing schedules.

Product

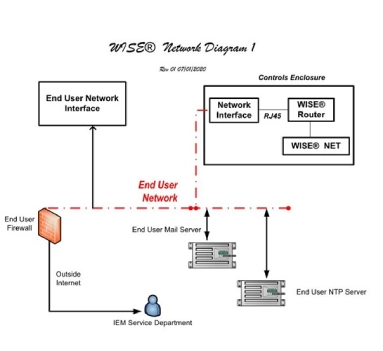

IEM’s WISE® software diagram
Product

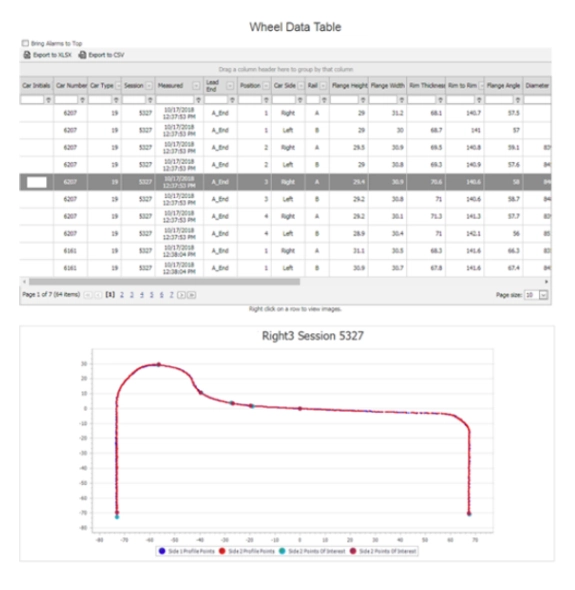

IEM’s WHEELTRACKTM profile subsystem displaying a wheel’s 2D profile

Customers will be given access to extensive user administration controls, allowing them the ability to create accounts for everyone in their organization. Each user has a tailored set of permissions, allowing them access to various parts of the system. The administration is done centrally on a single IEM provided server, where users will designate a set of lead admins who can create the rest of the user group.

WHEELTRACK™ reduces the time spent on wheel inspection, increases vehicle utilization by reducing unscheduled downtime due to wheel wearrelated issues, and can extend wheel life by optimizing wheel truing schedules. WHEELTRACK™ reduces the capital costs of maintaining an inventory of replacement wheel sets by predicting wheel replacement requirements, and produces data to evaluate the wear rates of wheel profiles.

Product Features

Competitive Advantages

  • 01 Immediate, Detailed Reports
  • 02 Designed to Integrate Complex Systems
  • 03 IEM-Delivered IT Support

Key Features & Details

The Session Lookup page allows users to lookup a particular car or train to obtain all measurement data. Session lookups are very useful to see how the system is performing day-to-day. Once you find a train that you’d like to review, you can get a detailed look at the Wheel Data just by clicking on the session. When the train data comes up, it will give you a detailed measurement breakdown for each selected subsystem. Any wheel with measurements outside of acceptable user-defined tolerances will be highlighted as warnings or alarms.

Product

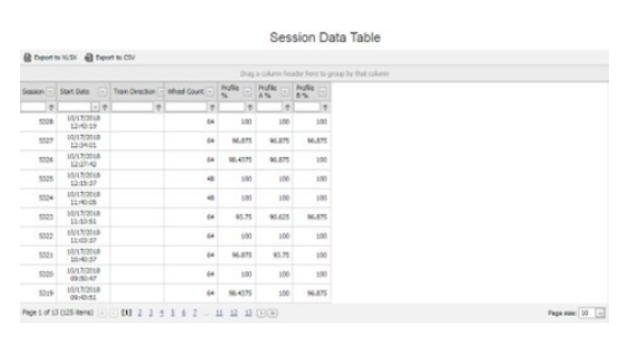

IEM’s WHEELTRACKTM Session Lookup page
Product

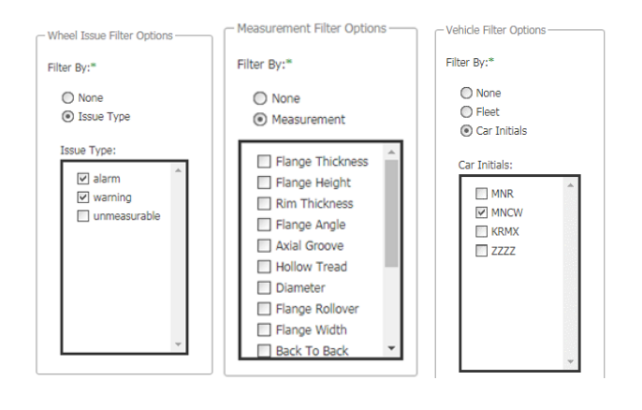

IEM’s WHEELTRACKTM features dozens of effective filters to parse through huge amounts of data

In addition, if the profile subsystem is selected, the 2D wheel profile will be automatically loaded for any highlighted wheel. Right-clicking on a specific wheel will allow the user to load any images associated with that wheel directly from the WISE° site, allowing the customer to perform manual review of measurements taken. All images will be displayed in an image gallery at the bottom of the page, where they can be easily reviewed or saved to the user’s machine by right-clicking on the desired image.

Data Filtering Options

The WISE® WHEELTRACKTM has advanced datafiltering options that gives you easy access to measurements on-demand. You can specify a start and end date, measurement type, issue type, vehicle type, and component type, with detailed sub-search systems that are fully detailed.

The Trending page allows for a comprehensive breakdown of individual measurements over time. IEM uses various database algorithms utilizing the “law-of-large-numbers” to build trends of data repeatability. Data will be displayed on a car or axle bases, allowing for easy comparison of wear-rates between the individual wheels of a car.

Product

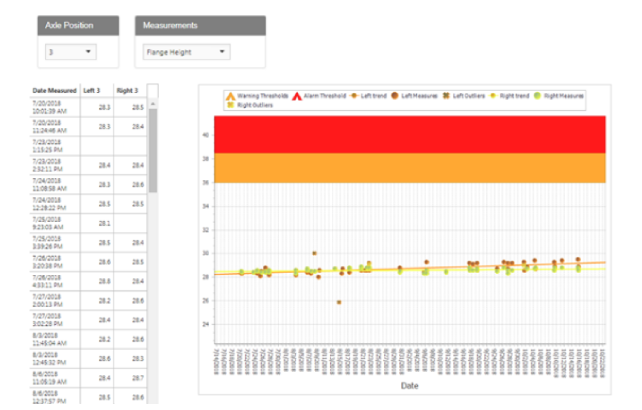

The WHEELTRACKTM System’s Trending Page
